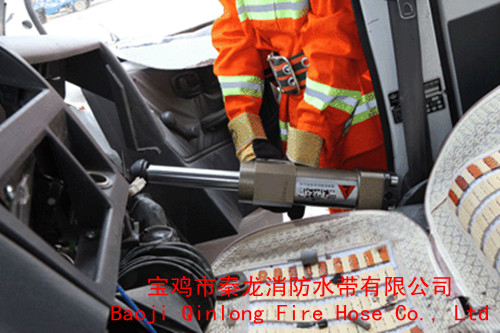

Working together with motored pump, electric pump or manual pump, this product series serves extending purpose. In the event of fire or earthquake, it is used to protect rescuers and victims within dangerous buildings by propping up or fixing dangerous objects before entry for rescue operations. In the case of traffic accident, it can be used to hold up or put up different parts of the involved vehicle as necessary. Two different models of this series can be used in relay to open a passage for rescue crew to come to the rescue of stranded victims or endangered objects. It is an indispensable tool to fire brigades, traffic departments, industrial and mining organizations and other rescue facilities.
Main characteristics：
1)The hydraulic technique of 63Mpa super high pressure is adopted.
2)The base and pole are made of high-strength alloy steel, capable of loading within the whole length range.
3)The working cylinder is made of high-strength light alloy material, both light-weighted and symmetrical.
4)The handles and control buttons are human engineering-oriented; quick connecting parts.
5)Reasonable and compact structure, reliable, portable, easy to operate.
The ambient temperature of operation is -20°C to 50°C.
Technical data
Rated working pressure
|
63Mpa |
Piston stroke
|
300mm |
Spreading length
|
830mm |
Extending force
|
120KN |
Total weight
|
11.5kg |
