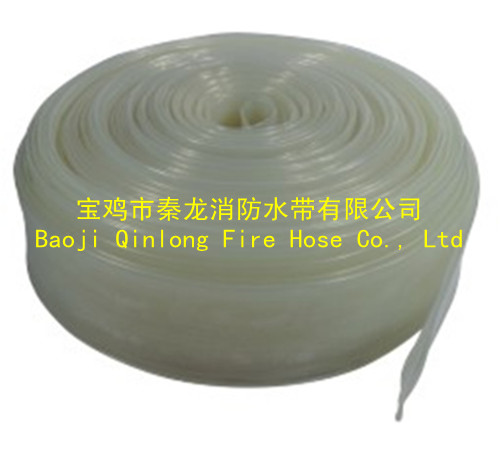

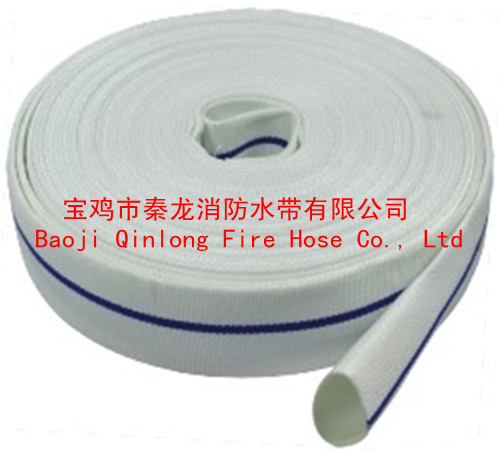

PU lining fire hose


Features:
1) Lined with polyurethane
2)The out jacket is made of 100% high-tenacity polyester yarn

3) Hose made with equipment imported from Germany
4) Thinner, softer and lighter
5) More convenient to use
6) Resistant to high pressure, oil and extreme temperature
7) Unit weight is 40% lighter than rubber lined hoses
8) Different colors of lining available: blue, black, transparent
9) Length: 15, 20, 25, 30, or 40mm
10) Proprietary design

TECHNICAL PARAMETERS
    Model
Inner Dia (inch)
Inner Dia(mm)
Working Pressure  (Bar/Psi)
Test Pressure(Bar/Psi)
Burst Pressure(Bar/Psi)
  C13 1〃 25 13/190 20/290 ≥39/565
1 1/2〃 40 13/190 20/290 ≥39/565
1 3/4〃 45 13/190 20/290 ≥39/565
2〃 50 13/190 20/290 ≥39/565
2 1/2〃 65 13/190 20/290 ≥39/565
2 3/4〃 70 13/190 20/290 ≥39/565
3〃 75 13/190 20/290 ≥39/565
4〃 100 13/190 20/290 ≥39/565
  C16 1〃 25 16/235 24/350 ≥48/700
1 1/2〃 40 16/235 24/350 ≥48/700
1 3/4〃 45 16/235 24/350 ≥48/700
2〃 50 16/235 24/350 ≥48/700
2 1/2〃 65 16/235 24/350 ≥48/700
2 3/4〃 70 16/235 24/350 ≥48/700
3〃 75 16/235 24/350 ≥48/700
  C20 1 1/2〃 40 20/290 30/435 ≥60/870
1 3/4〃 45 20/290 30/435 ≥60/870
2〃 50 20/290 30/435 ≥60/870
2 1/2〃 65 20/290 30/435 ≥60/870
3〃 75 20/290 30/435 ≥60/870
  C25 1 1/2〃 40 25/360 37/540 ≥75/1080
1 3/4〃 45 25/360 37/540 ≥75/1080
2〃 50 25/360 37/540 ≥75/1080
2 1/2〃 65 25/360 37/540 ≥75/1080
