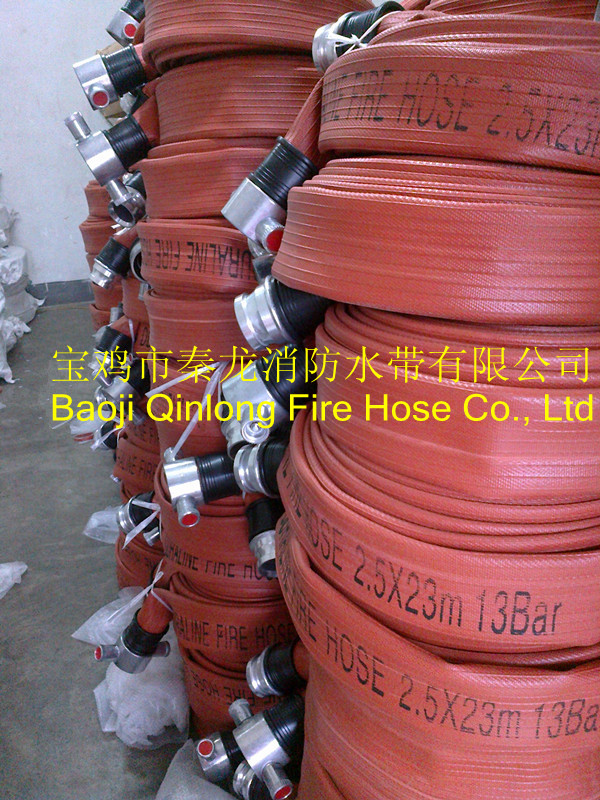

DURALINE FIRE HOSE |
| |
1. the outer layer of duraline fire hose is made of high-quality rubber, 100% high-strength polyester filament in middle, lined with natural rubber or NBR.
2. light weight, high peel strength, strong wear resistance, high-quality anti-aging properties, ozone resistance and good oil resistance.
3. inner diameter: 1 1/2 "to 2.5"
4. Working pressure: 1.3MPa, 1.6MPa, 2.0MPa, 2.5MPa;
5.The main scope of: oil, chemical plants, ships and so on.
Technical Parameters
|
Model |
Diameter |
Working Pressure
(MPa/Bar/Psi) |
Test Pressure
(MPa/Bar/Psi)
|
Burst Pressure
(MPa/Bar/Psi) |
Length |
|
Inner Dia (inch) |
Inner Dia (mm) |
|
C 13 |
1.5 |
40 |
1.3 / 13/195 |
2.6/26/390 |
3.9/39/580 |
10m-50m |
|
2 |
50 |
|
2.5 |
65 |
|
3.2 |
80 |
|
4 |
100 |
|
C 16 |
1.5 |
40 |
1.6 / 16/240 |
3.2/32/480 |
4.8/48/720 |
10m-50m |
|
2 |
50 |
|
2.5 |
65 |
|
3.2 |
80 |
|
4 |
100 |
|
C20 |
1 |
25 |
2.0 / 20/300 |
4.0/40/600 |
6.0/60/900 |
10m-50m |
|
1.5 |
40 |
|
2 |
50 |
|
2.5 |
65 |
|
3.2 |
80 |
|
4 |
100 |
|
C 25 |
2 |
50 |
2.5/25/360 |
5.0/50/720 |
7.5/75/1125 |
10m-50m |
|
2.5 |
65 |
|
3.2 |
80 |
|
C 30 |
2 |
50 |
3.0/ 30/450 |
6.0/60/900 |
9.0/90/1300 |
10m-50m |
|
2.5 |
65 |
|
3.2 |
80 |
|
| |
| |
|
|
|
